How to Pack and Ship Heavy Corvette Parts to Van Steel

If you are restoring a classic Corvette or upgrading your suspension, sending your core parts to Van Steel Corvettes is a major milestone in your project. However, shipping heavy, awkwardly shaped iron and steel components isn't quite like mailing a sweater.

If parts are packaged incorrectly, they can break through boxes, damage shipping carrier infrastructure, or worse—never get delivered.

After you have received an estimate or placed an online order, ensure your parts make the journey safely. We’ve put together the ultimate heavy-part shipping guide below.

1. Choosing Your Carrier & Estimating the Costs

When shipping components of this caliber, your choice of carrier matters. Van Steel standardizes its return shipping using UPS, but you have flexibility for the incoming journey.

Carrier Recommendations

• UPS or FedEx: Highly Recommended. Both carriers feature robust logistics networks built to handle rugged, heavy commercial parcels up to 150lbs.

• USPS: Not Recommended. The postal service is simply not engineered for heavy, bulky automotive components. Their pricing scales aggressively against heavy packages, meaning you will likely pay a steep premium for an inferior handling experience.

What Will it Cost? (Basic Estimated Rates)

Shipping costs fluctuate based on distance (zones), but for standard ground transport across the continental United States, you can generally budget for the following baseline ranges per box:

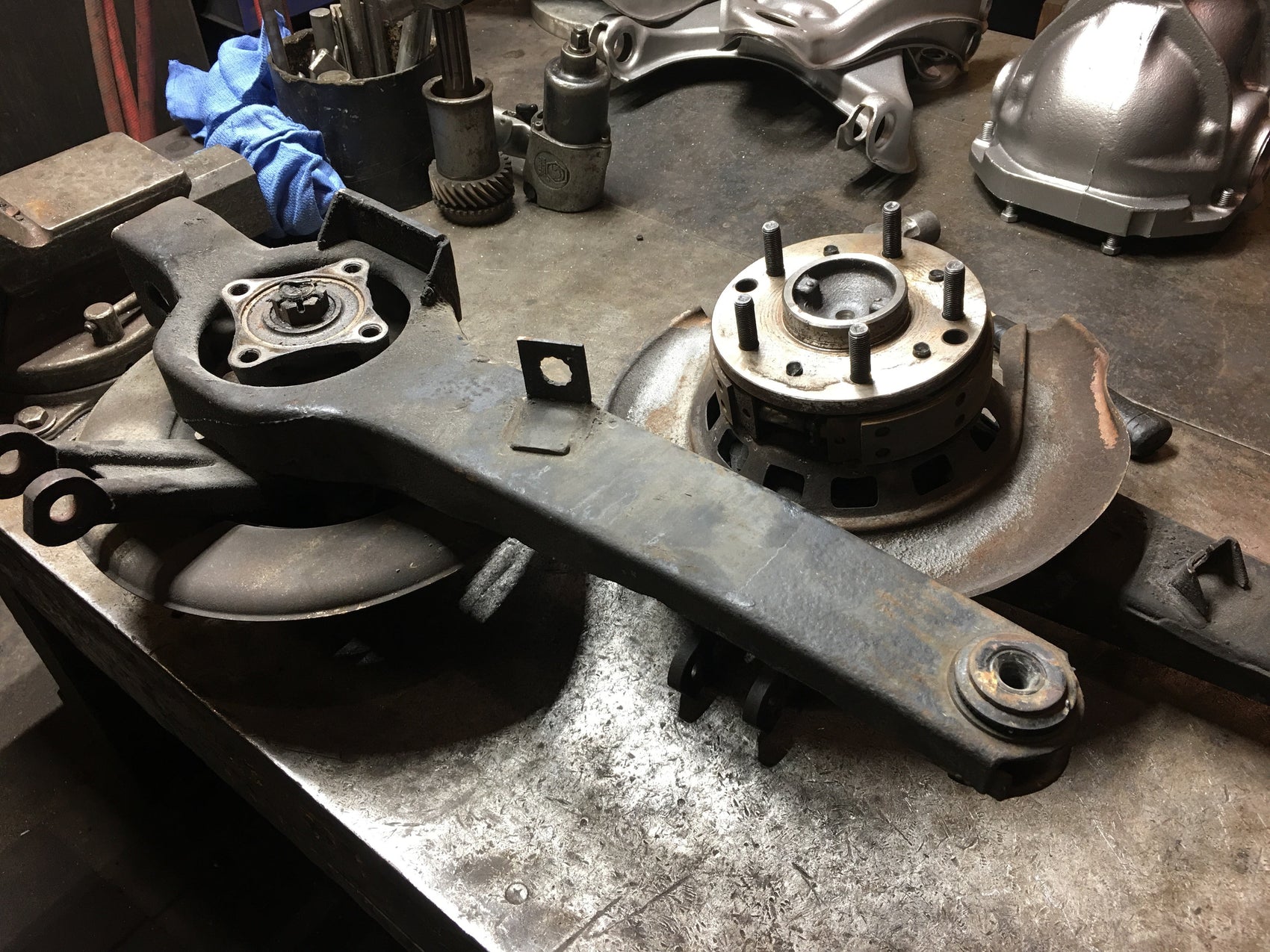

• Trailing Arm (without a rotor ~45 lbs): Expect to pay between $50 and $90 per arm. One t-arm per box.

• Trailing Arm (with a rotor ~58 lbs): Expect to pay between $60 and $115 per arm. One t-arm per box.

• Bearing Assembly (without a rotor ~26 lbs): Expect to pay between $30 and $65 per assembly. You can place two in one box.

• Differential (Drain Fluid ~110 lbs): Because this surpasses the 70 lb threshold, it incurs a heavy package handling fee. Expect ground shipping to run anywhere from $120 to $300+ depending on how many shipping zones it crosses. You MUST drain differential fluid as it'll leak out of the breather tube and any worn out seals. If not, the parts end up in quarantine until they deem the part safe to ship. This is typically 1-3 weeks.

2. The Golden Rules of Heavy Packing

The secret to shipping heavy metal parts is simple: Immobilization and structural integrity. If the component can shift even a fraction of an inch inside the box, the kinetic energy generated when the box rolls or drops will blow out a seam.

The Right Enclosure: Triple-Walled Cardboard

You really shouldn't reuse an old Amazon box. You need commercial-grade structural strength.

• Requirement: Use triple-walled corrugated cardboard boxes. These are explicitly rated for high bursting tests and heavy industrial loads. If you reuse those amazon boxes, only use LOTS of reinforced packing tape. Include extra tape where the wheel studs are. U-haul offers thicker walled boxes, but they tend to be much larger than needed. Ideally the box will be just big enough to house your parts with little to no extra room but not bulging at the seems.

• The Tote Alternative: Some builders prefer using heavy-duty plastic storage bins, such as the famous Black and Yellow totes from Home Depot or Lowe's. This is acceptable, but you must completely protect the lug studs. Unprotected lug studs can easily pierce right through the plastic walls during transit if the tote is dropped. They also MUST be tightly packed so the parts can't shift in transit.

What to Use for Internal Cushioning

• USE: Dense layers of scrap cardboard and heavily packed brown packing paper. Wedge these materials tightly into every void. The goal is to create a solid block inside the box so that when it is flipped upside down, dropped or rolled, nothing moves.

• DO NOT USE: Styrofoam sheets or packing peanuts. This is the most common mistake. Under the immense pressure of a 45 lb trailing arm or a 110 lb differential, Styrofoam and peanuts will immediately shred into static dust. They offer zero protection and leave your part loose to destroy the box from the inside out.

3. The "Fail-Safe" Step: Tag Your Parts!

It doesn't happen often, but industrial shipping belts can occasionally catch a box corner and shred the outer packaging, destroying the shipping label in the process. If a carrier finds a loose, heavy differential with no label, it ends up in a lost-and-found freight graveyard.

Pro-Tip: Always wrap a heavy-duty luggage tag, zip-tie label, or a piece of duct tape directly onto the physical metal part itself. Write Van Steel’s delivery address, your name, your phone number, and your estimate/invoice number directly on the part.

If the box fails completely, the carrier can easily identify exactly where the component belongs and get it back on its way to the shop.

Final Checklist Before Tape Meets Box:

1. Is the part directly tagged with contact info?

2. Are the lug studs wrapped/shielded?

3. Did you avoid all packing peanuts and styrofoam?

4. Is the box packed so tightly with cardboard that nothing shakes when you test-budge it?

5. Did you seal all seams using heavy-duty, reinforced "H-style" taping methods?

Pack it right, ship it smart, and your Corvette parts will arrive at Van Steel safely, ready for their world-class rebuild!
